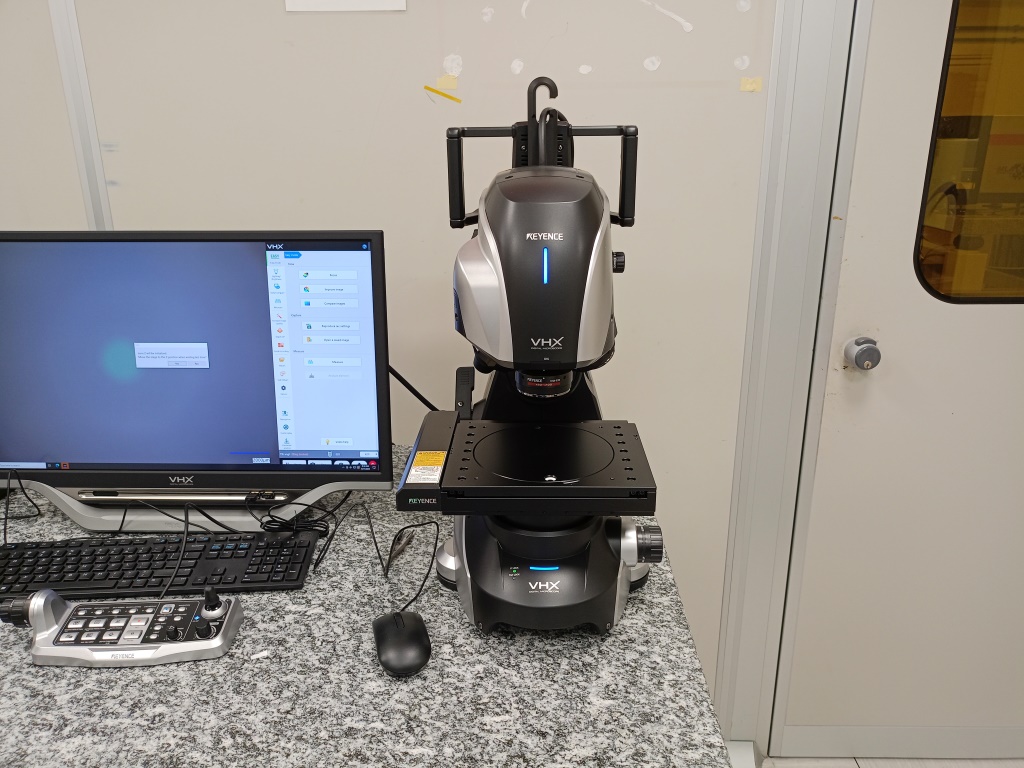

Digital Microscope – Keyence VHX-X1

The Keyence VHX-X1 is a fully motorized 4K digital microscope system capable of high-resolution imaging and advanced analysis. It supports a wide magnification range — from low (20×) to ultra-high (up to 6000×) — and integrates a large Z-axis travel, automated X-Y stage control, and multidirectional lighting for both brightfield and darkfield observation. The system enables large-area image stitching, 3D surface profiling, and precise detection of microscopic defects.

• Wide magnification range (20× up to 6000× distributed over 4 lenses)
•  Automated objective switching
• Large z-axis travel (50 mm)
• Automated x-y stage control (100mm × 100mm)
• Bright field, dark field, mixed and transmission illumination
• Free-angle observation system (-30° to + 90° microscope head tilt)

• Multi-directional lighting
• Auto-focus
• Integrated anti-vibration system
• Serial recording for large area image stitching
• 3D depth composition analysis and profiling
• Increased resolution HDR mode
• Optical shadow effect mode for microscopic features enhancement/detection
